Shadow and Border

A border strokes the outline of a view, and a shadow draws a blurred copy of its shape behind it. Together with CornerRadius and Clip they shape the box of a view. They are not views of their own but modifiers that every styled view has: VStack, HStack, ZStack, Box, Text, Icon, Image, Button, TextField, List, ScrollView and the others.

Use a border to separate a surface from its surroundings, or to mark a state such as a selection. Use a shadow to lift a surface above the content around it.

// A tile is a surface with a title and a caption. The modifiers that
// differ per tile are applied by the caller.
tile := func(title, caption string) ui.Stack {
	return ui.VStack(
		ui.Text(title),
		ui.Text(caption).FontSize(12).Foreground(ui.ColorSecondaryLabel),
	).Gap(4).Padding(16).Frame(160, 96).
		Background(ui.ColorSurface).CornerRadius(12)
}

// A hairline one logical pixel wide in the separator color, like a card.
hairline := tile("Hairline", "Width 1, separator").
	Border(ui.Border{Width: 1, Color: ui.ColorSeparator})

// A thicker border in the accent color. It lies inside the bounds, so
// the tile keeps its size.
accent := tile("Accent", "Width 2, accent").
	Border(ui.Border{Width: 2, Color: ui.ColorAccent})

// A soft shadow below the tile. It does not change the layout.
soft := tile("Soft shadow", "Blur 16, offset 4").
	Shadow(ui.Shadow{Blur: 16, OffsetY: 4, Color: ui.RGBA(0, 0, 0, 60)})

// A negative spread tucks the shadow under the tile, so only the
// offset side shows.
lifted := tile("Lifted", "Spread -6, offset 12").
	Shadow(ui.Shadow{Blur: 20, Spread: -6, OffsetY: 12, Color: ui.RGBA(0, 0, 0, 90)})

// A picture clipped to its rounded corners, with a border drawn on top.
// The caption is a second layer of a ZStack.
picture := ui.ZStack(
	ui.Image(pictures[0]).Fit(ui.FitCover).Frame(160, 96).
		CornerRadius(12).Clip(true).
		Border(ui.Border{Width: 2, Color: ui.ColorSurface}).
		Shadow(ui.Shadow{Blur: 16, OffsetY: 4, Color: ui.RGBA(0, 0, 0, 60)}),
	ui.VStack(
		ui.Text("Clipped picture").Foreground(ui.RGB(255, 255, 255)),
		ui.Text("Radius 12, border 2").FontSize(12).Foreground(ui.RGBA(255, 255, 255, 210)),
	).Gap(4).Padding(16),
)

return ui.HStack(hairline, accent, soft, lifted, picture).
	Gap(24).Align(geom.Alignment{Y: 0.5})

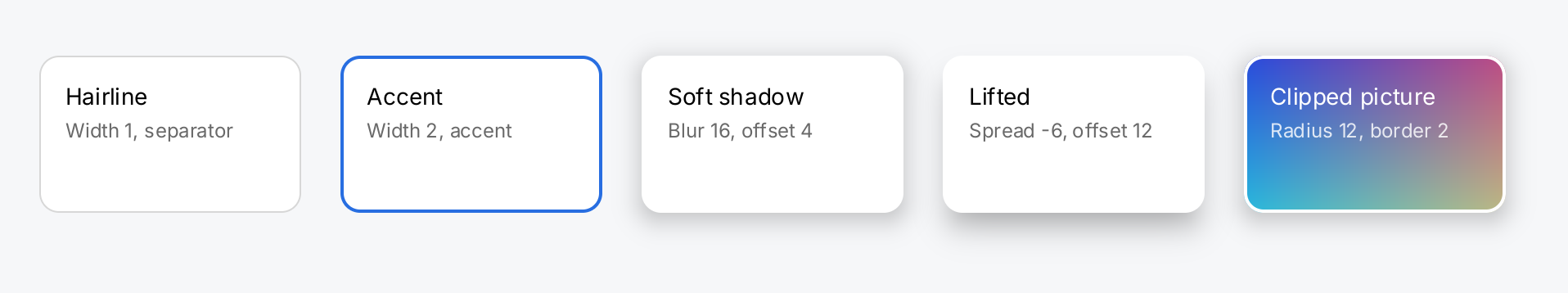

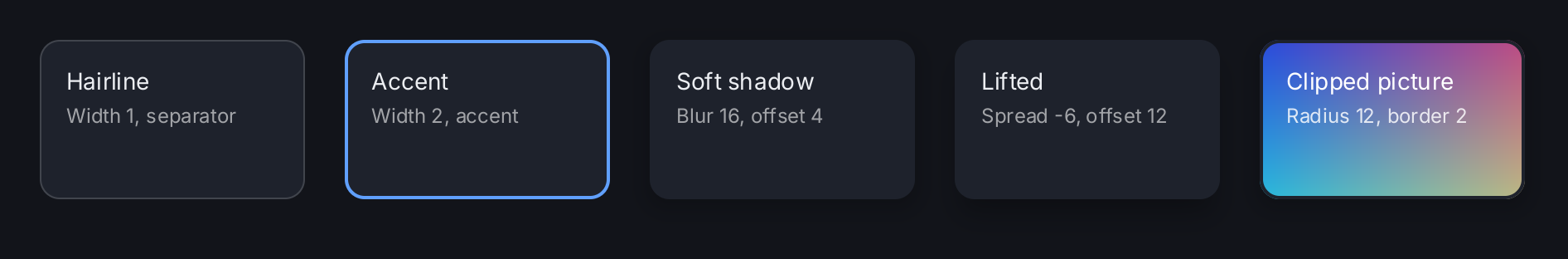

Full demo on GitHub ↗ · run it with go run ./docs/gallery -demo shadow-and-border

Usage

Border

Border takes a ui.Border with a Width in logical pixels and a Color. The stroke lies inside the bounds of the view, so a border never changes the layout: a tile keeps its size whether its border is 1 or 4 pixels wide. A border with a width of zero or a fully transparent color draws nothing.

ui.VStack(ui.Text("Selected")).Padding(16).
	Background(ui.ColorSurface).
	CornerRadius(12).
	Border(ui.Border{Width: 2, Color: ui.ColorAccent})

Use semantic colors such as ui.ColorSeparator or ui.ColorAccent. They are resolved against the current theme each time the view is built, so the border follows a switch between light and dark.

Shadow

Shadow takes a ui.Shadow. Blur is the blur diameter, the same value CSS and design tools use: the Gaussian has a standard deviation of Blur/2, and the visible falloff reaches about one and a half times Blur past the shape. A Blur of zero gives a hard edge. OffsetX and OffsetY move the shadow, positive right and down. Spread grows the shape before it is blurred; a negative Spread shrinks it and tucks the shadow under the view, so only the offset side shows.

card := ui.VStack(ui.Text("Lifted")).Padding(16).
	Background(ui.ColorSurface).
	CornerRadius(12).
	Shadow(ui.Shadow{Blur: 20, Spread: -6, OffsetY: 12, Color: ui.RGBA(0, 0, 0, 90)})

A shadow extends the painted area, but neither the layout size nor the hit area. It never pushes a sibling away and never makes the gap around a view clickable. Leave room for it: a parent that clips, such as a ScrollView, cuts the shadow off at its edge like anything else, so give the content some padding.

The shadow is the shape of the view’s bounds, drawn whether or not the view has a background. Give a shadowed view an opaque background, or the shadow shows through it. On a dark background a black shadow has little contrast, so in the dark theme a border or a lighter surface often separates better.

A Blur that is negative or not finite, and a Spread or offset that is not finite, panic when the modifier is applied, so the mistake shows up at the call site and not as an empty window.

Corner radius

CornerRadius rounds the background, the border and the shadow together. The shadow’s corners grow with a positive Spread and shrink with a negative one, down to square corners. The radius does not cut the content; that is what Clip is for.

Clip

Content clipping is off by default, so a child may paint past the bounds of its parent. Clip(true) confines the children to the bounds of the view, for painting and for input alike: a clipped part of a child neither shows nor receives taps. A few views always clip; see the end of this section.

The clip of a container is the bounding rectangle, not the rounded shape. A child that fills a rounded stack covers its rounded corners even with Clip(true). Pictures are the exception: Image with a CornerRadius and Clip(true) rounds the picture itself, as the last tile of the demo does.

ui.Image(src).Fit(ui.FitCover).Frame(160, 96).
	CornerRadius(12).
	Clip(true)

The clip surrounds the content, not the view’s own drawing. Its shadow still extends past the bounds, and its border is drawn on top of the clipped content. ScrollView, VirtualList, ImageGallery, TextField and OnScreenKeyboard always clip; Clip(false) on them panics.

Drawing order

A view draws in a fixed order: shadow, background, content, border. The order does not depend on the order in which you call the modifiers. The border is drawn last, so it lies on top of the children, which is how the demo frames a picture with a border in the surface color. Calling a modifier again replaces its value; the last call wins.

API

ui.Border and ui.Shadow are aliases of render.Border and render.Shadow. They are plain structs; you set their fields directly.

Border

Shadow

See render.Border and render.Shadow on pkg.go.dev for the helper methods IsVisible, Sigma and Extent.
